Silverado EV Ohmmu H7 MAX: The 12V Upgrade Explained
for the Silverado EV (and GMC Sierra EV): What It Is, Why It Matters, and What to Expect
Disclosure: I purchased this Ohmmu H7 MAX with my own money. This post is not sponsored. We may earn commission when you use our links and discount codes at Ohmmu.
If you’re new to EV ownership, here’s the surprise: even in a truck with a massive high-voltage battery pack, the “little” 12V battery can still make or break your day. When the 12V system is weak or unstable, you can see weird warnings, glitches, or a truck that simply won’t wake up.
That’s exactly why I decided to upgrade to the Ohmmu H7 MAX Lithium Iron Phosphate (LiFePO4/LFP) 12V battery on my Chevrolet Silverado EV. And since the GMC Sierra EV is the Silverado’s sister truck, I’m including it here too.
Quick Mythbust: Why EVs Still Need a 12V Battery
The high-voltage pack is for propulsion (driving), but the truck’s electronics still rely on low voltage. The 12V system powers the computers, modules, sensors, locks, lights, infotainment, and the “wake up” sequence that allows the vehicle to go "ready".
In other words: the 12V battery is the heartbeat that brings the rest of the truck online.
What Happens When the 12V Gets Weak?
When the 12V battery is struggling, symptoms can be all over the place—random warnings, odd behavior from screens or electronics, intermittent issues that come and go, or a vehicle that doesn’t reliably wake up.
The key point: even if your main pack is fully charged, the truck still needs a healthy 12V system to boot the computers and engage everything properly.
Why I Chose the Ohmmu H7 MAX+ Lithium Upgrade
1) Peace of mind & reliability
I’m not expecting more range or horsepower here. This is a reliability upgrade—reducing the chance that a low-voltage issue turns into a “why won’t my truck wake up?” moment at the worst possible time.
2) Cold weather confidence
Winter is often when low-voltage batteries show their weaknesses. Ohmmu states the MAX version includes self-heating technology that warms the battery during charging in extreme cold conditions for protection and continued operation.
3) Stable voltage for accessories + “no drama” electronics
Even though this is an EV, the 12V system still supports tons of real-world electronics—lighting, trailers, cameras, chargers, and other add-ons. Ohmmu positions their battery as higher performance with reduced voltage sag (their wording highlights improved 12V performance and “no voltage sag”).
I’ll share my real-world experience over time and update this post accordingly.
4) Programming & diagnostics stability (Bosch GM MDI 2)
This one is personal for me: when you’re doing diagnostics or module programming with a Bosch GM MDI 2, you want stable low voltage so you’re not bricking an expensive control module. The goal here is to reduce one big variable—12V instability—when I’m working on the truck.
The factory 12v is an 80 Ah AGM, so why is this upgrade needed?
Real-World Capacity: 80Ah AGM vs. 120Ah H7 Max+ (LFP)
A lot of batteries look comparable on paper, but the “Ah” number doesn’t always translate to the same real-world runtime—especially when you’re comparing lead-acid (AGM) to lithium iron phosphate (LiFePO₄ / LFP).
Why the 80Ah AGM Doesn’t Deliver “80Ah” in Practice
Your 80Ah AGM rating is typically measured at the 20-hour test rate (a slow, gentle discharge). In real use—running an inverter, compressors, power tools, or anything with moderate-to-high current draw—AGM batteries suffer from:
- Voltage sag under load (the battery droops quickly as state of charge drops)
- Peukert losses (lead-acid delivers fewer total amp-hours when discharged faster)
- Early low-voltage shutdowns (inverters and electronics cut off sooner because voltage drops below the threshold, even if capacity remains chemically “in the battery”)
Because of that, many users only get about 40–60% of the nameplate rating as usable energy if they want reasonable battery life and stable voltage.
A realistic usable range for an 80Ah AGM is often:
- 35–55Ah usable (depending on load and cutoff voltage)
- Roughly 400–500Wh usable, sometimes less with heavy loads
Why the 120Ah H7 Max+ (LFP) Feels Much Bigger
If the H7 Max+ is 120Ah LFP, it behaves very differently:
- LFP holds a much flatter voltage curve
- It has far less voltage sag
- It delivers close to its rated capacity even at higher discharge rates
- You can safely use a larger percentage of the pack without destroying cycle life
So in normal real-world use, a 120Ah LFP pack typically delivers most of that capacity, often:
- 95–110Ah usable
- Roughly 1,200–1,400Wh usable (depending on true nominal voltage and BMS cutoff)
The “Apples-to-Apples” Comparison: Usable Energy (Wh), Not Just Ah
The cleanest way to compare batteries is watt-hours, because Ah alone ignores voltage drop and cutoff behavior.
A simple rule of thumb many people find accurate:
- Lead-acid AGM: plan on 50% usable (sometimes less if voltage sag triggers shutdown early)
- LFP: plan on 80–95% usable with much steadier performance
So even though the labels say 80Ah vs 120Ah, the real-world gap is usually much bigger than it looks.
What This Means in Real Life
In practical terms, a 120Ah LFP pack often feels like two to three times the usable runtime of an 80Ah AGM, especially with inverter loads.
And the experience is better too: the LFP battery tends to deliver full power longer, while the AGM feels like it “falls off a cliff” once it hits the lower part of its state of charge.

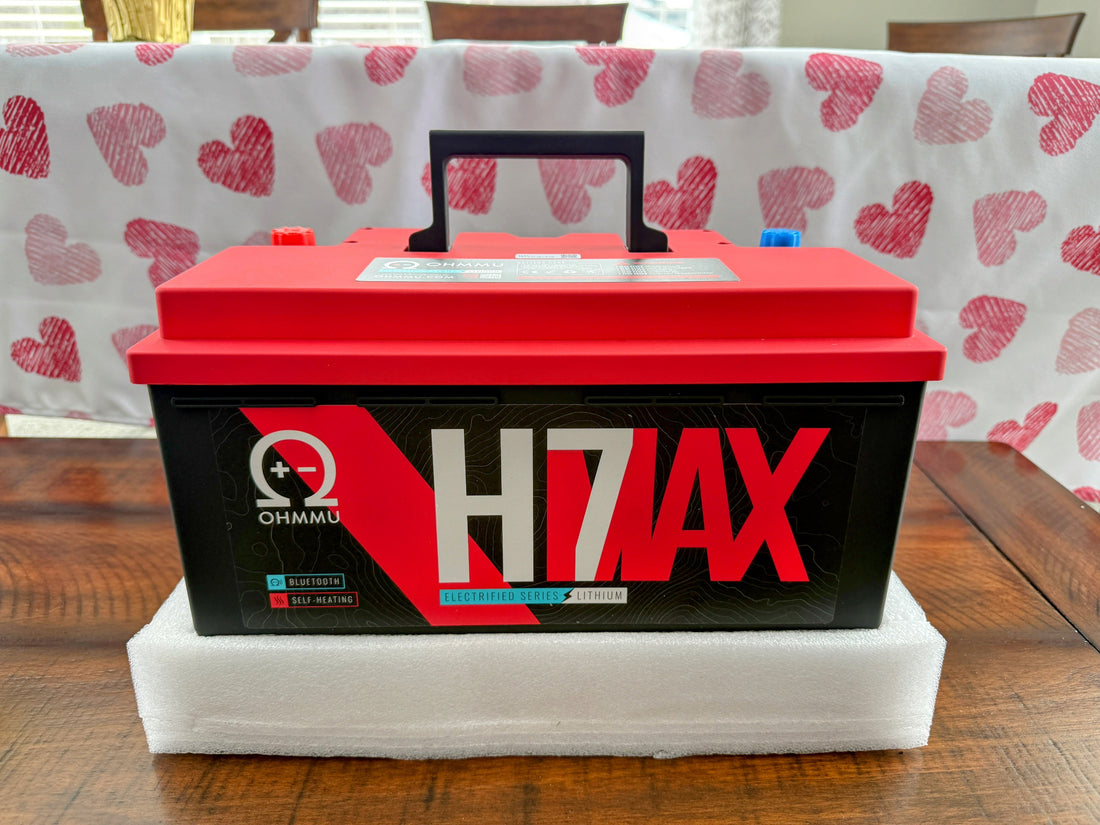

What the Ohmmu H7 MAX Is (Chemistry, Features, Protections)
Chemistry / Type
Ohmmu describes the H7 MAX as a Lithium Iron Phosphate (LiFePO4 / LFP) 12V battery, designed as a drop-in replacement that doesn’t require firmware changes.
Built-in protections and features (BMS + Bluetooth)
The H7 MAX includes a Bluetooth-enabled Battery Management System (BMS) that manages cell balancing and lists protections for: high/low voltage, overcharge, high/low temperatures, and short circuits.
It also supports the Ohmmu Energy App for monitoring and diagnostics (state of charge and other battery info).
Specs (MAX Version)
- Group size: H7
- Terminals: SAE, positive top back left
- Dimensions: 314mm x 175mm x 189mm (L x W x H)
- Reserve capacity (MAX): 260
- Weight (MAX): 24 lbs
All specs above are pulled from Ohmmu’s product listing for the H7 MAX.
OE Weight:
Ohmmu H7 Max+ Weight:
Vehicle Compatibility: Silverado EV + GMC Sierra EV
Ohmmu lists this H7 format as compatible with the Chevrolet Silverado EV, and they also have a dedicated listing for the GMC Sierra EV. If you’re ordering internationally, Ohmmu notes some vehicles may require SAE to JIS adapters, so confirm terminal type before ordering outside the USA.
What’s in the Box?
The Ohmmu H7 MAX package includes:
- 12V battery
- Warranty card
- 10mm wrench
- Ohmmu wristband
Warranty Notes
Ohmmu lists a 4-year full-replacement limited warranty for the Ohmmu H7 MAX, and they link warranty terms and claim information on their site.
Installation Notes
I will include the official installation video from Ohmmu with this blog post. I do have some recommendations though in addition to that video consider taking the following steps:
- Use the Bluetooth app to turn off charging/discharging until installation is complete
- Use a small amount of Dielectric grease on the terminals to prevent corrosion.
- Avoid using an impact to tighten terminal clamp bolts
- Place the truck in low rider or entry/exit ride height to make installation easier
My Early Take (and What I’ll Report Back On)
This upgrade is primarily about reliability and stable voltage—especially in cold weather and during diagnostics/programming sessions. In addition, if the truck ever needs a hard reboot the bluetooth app makes it easy to turn off discharging for 30 minutes to perform a hard reset/reboot on the truck instead of disconnecting the negative battery terminal. Over time, I’ll report back on:
- Cold weather behavior and wake-up consistency
- Data reported via the Ohmmu energy app
- Longer-term reliability
FAQ
Will this increase my range?
Realistically, this is not a range mod. It’s a reliability and stability upgrade.
Does it work with the GMC Sierra EV?
Ohmmu offers a Sierra EV listing and sells the same H7 format for these sister-platform EV trucks.
Final Thoughts
If you’re the kind of owner who road trips, tows a trailer, runs accessories, or does diagnostics/programming work, a 12V upgrade can be a smart “reduce the headaches” move. I’ll keep this post updated as I put real miles and real seasons on the Ohmmu H7 MAX+.
Got questions? Drop a comment—especially if you’ve ever seen low-voltage warnings or weird module behavior on your Silverado EV or Sierra EV.
